ANSI 150LB DIN PN16 Carbon Steel Galvanized Flange EPDM Rubber Flexible Rubber Expansion Joint

Name: ANSI 150LB DIN PN16 Carbon Steel Galvanized Flange EPDM Rubber Flexible Rubber Expansion Joint
Brand: ZhiCheng
Price: 30 USD

ANSI 150LB DIN PN16 Carbon Steel Galvanized Flange EPDM Rubber Flexible Rubber Expansion Joint Manufactures

Brand Name : ZhiCheng

Model Number : KXT100

Certification : 35023QCEQW7ROM

Place of Origin : Gongyi, China

MOQ : 1

Price : CN¥30-¥105

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : Monthly production of 8,000 pieces

Delivery Time : 1 - 100 pieces in 3 days

Packaging Details : 1. Inner packing: plastic film plus carton box. 2 . Outer packing: wooden case (usually size 1100mm*1100mm*1100mm).

Flange Material : Carbon Steel Galvanized

Rubber material : EPDM, CR, NBR, NEOPRENE

Model : DN20-DN3000

connection method : Flange

Line type : Flange end or thread end

Flange standard : DIN, BS, JIS, ANSI

Applicable temperature : -15~80℃(Special -30~150℃)

Applicable media : Air, water, sewage, sea water, acid, alkali, oil etc

Working pressure : 6-40bars

Test pressure : 1.5 times of working pressure

Explosion pressure : 2 times of working pressure

Contact Now

ANSI 150LB DIN PN16 Carbon Steel Galvanized Flange EPDM Rubber Flexible Rubber Expansion Joint

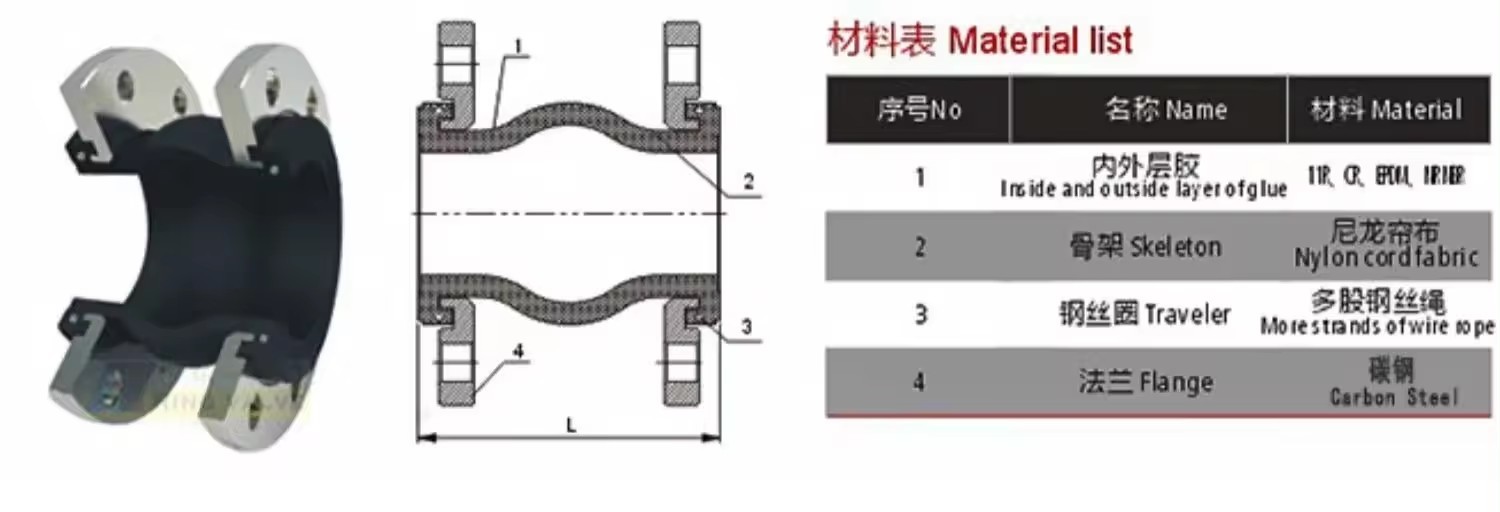

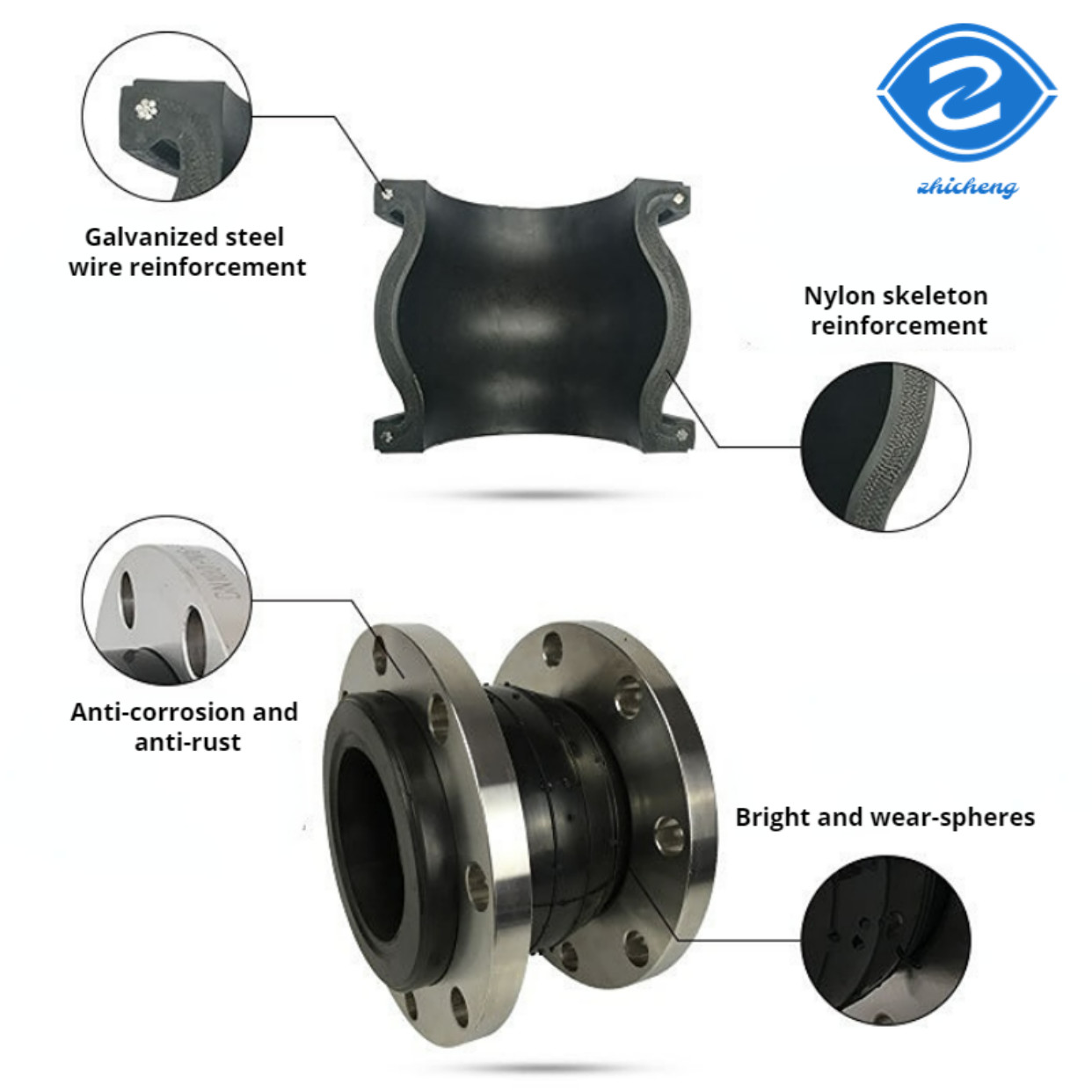

Rubber expansion joint is made of inner and outer rubber, cord layer, steel wire rope after vulcanization and metal flange of parallel joint or loose sleeve combination, widely used in all kinds of piping systems.

ANSI 150LB DIN PN16 Carbon Steel Galvanized Flange EPDM Rubber Flexible Rubber Expansion Joint

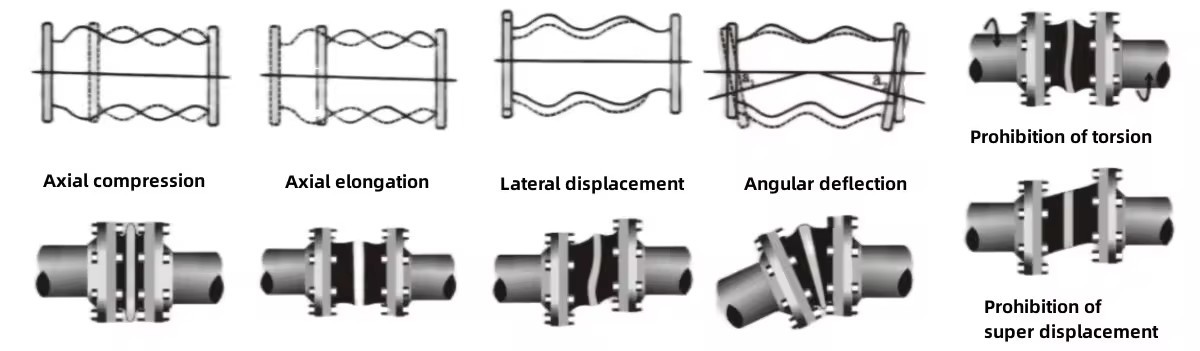

The rubber expansion joints allow for four way movements, and they are molded from synthetic rubber and nylon cord, and this can reduce vibration and noise, and compensate thermal expansion and contraction caused by temperature change.
ANSI 150LB DIN PN16 Carbon Steel Galvanized Flange EPDM Rubber Flexible Rubber Expansion Joint

**Operation condition**
Working temperature	-15℃~80℃(-30℃~150℃)
Working pressure	6-40bars(PN6-PN40)
Test pressure	1.5 times of working pressure
Explosion pressure	2 times of working pressure
Applicable media	Air, water, sewage, sea water, acid, alkali, oil etc.

ANSI 150LB DIN PN16 Carbon Steel Galvanized Flange EPDM Rubber Flexible Rubber Expansion Joint

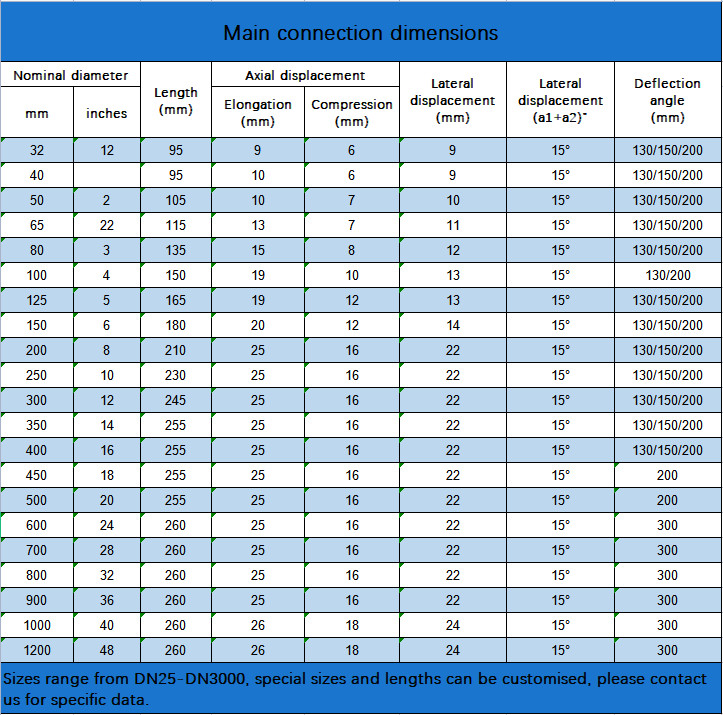

( Note: Size range from DN25-3000 are all available, special size and length can also be customized

please contact us for exact data.

Production

ZHICHENG has a strict quality control system, the standard production process, standardized factory testing means to ensure that
every product to meet the customer requirements, and provide customers with high-quality products.

ANSI 150LB DIN PN16 Carbon Steel Galvanized Flange EPDM Rubber Flexible Rubber Expansion Joint

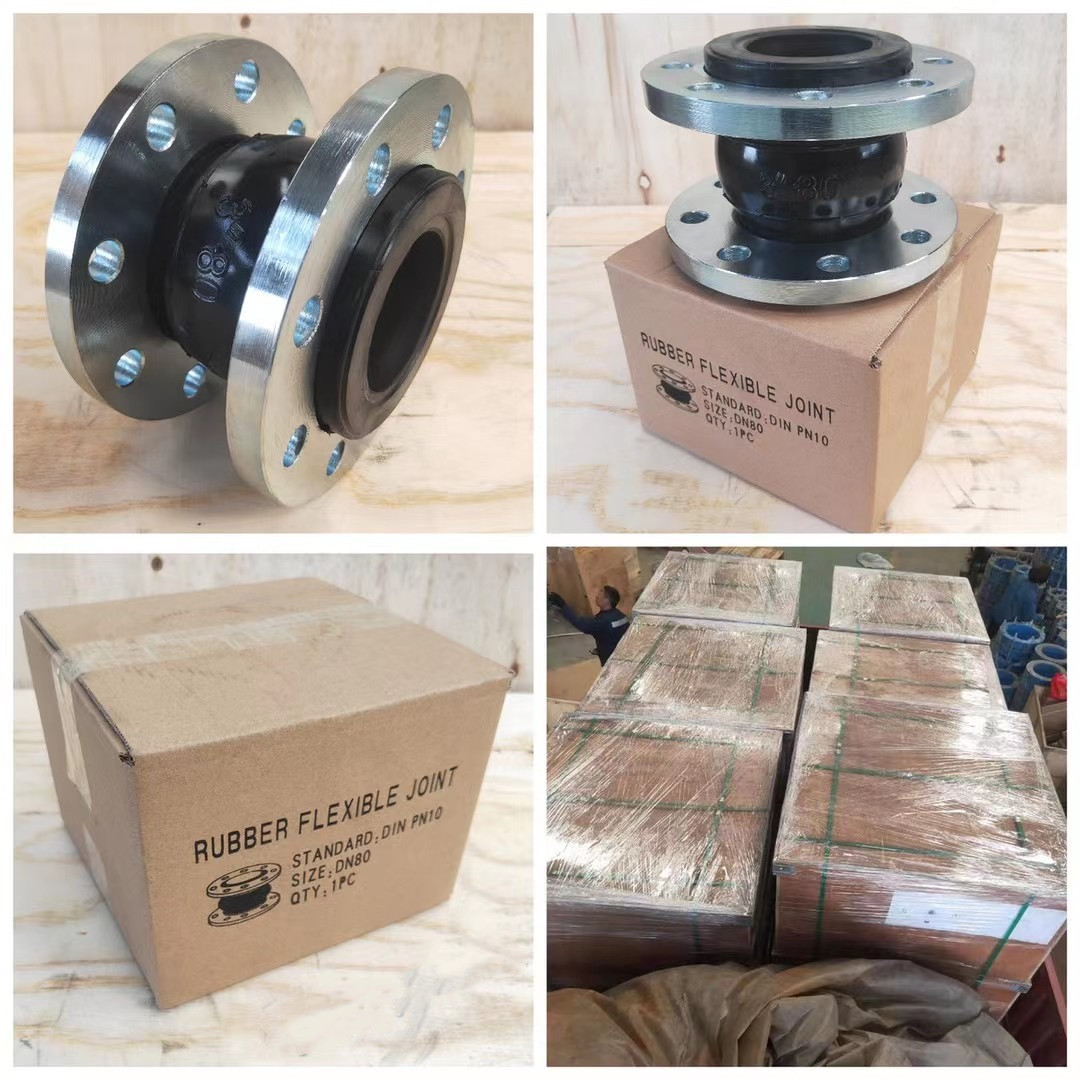

Packing & Delivery

1.Inner package: plastic film with carton cases.
2.Outer package: wooden cases(usually the size of 1100mm*1100mm*1100mm).

ANSI 150LB DIN PN16 Carbon Steel Galvanized Flange EPDM Rubber Flexible Rubber Expansion Joint

Product installation
When the customer installs, we will provide installation instructions, installation notes and maintenance instructions.

FAQ
Q: Are you a trading company or a manufacturer?
A: We are manufacturers of rubber expansion joints, metal expansion joints, flexible hoses, dismantling joints, trimmer joints,flange adapters and flanges with over 30 years experience.
Q: Do you have a catalogue?
A: Yes, we do. Please let me know your email or instant messenger and we will send you our catalogue.
Q: Can you provide drawings and technical information?
A: Yes, our specialist technical department will design and supply drawings and technical data.
Q: Do you provide samples? Are they free of charge or do you charge for them?
A: Yes, we can provide samples free of charge, but transport costs are borne by the customer.
Q: Can the products be manufactured to the customer's requirements?
A: Yes, the above specifications are standard specifications and we can design and manufacture as required.
Contact us for more details about price and packing, shipping and discount now!
